IMAP Email Client Configuration

This document covers configuration of the following IMAP clients that support connecting to a secure IMAP server:

Make sure you read the NOTE at the bottom of this page.

Settings Summary:
IMAP (Incoming) Server: imap.cs.princeton.edu
IMAP Settings / Port: SSL / Port 993
SMTP (Outgoing) Server: smtp.cs.princeton.edu
SMTP Settings / Port: TLS with Authentication / Port 587

Mozilla/Thunderbird/Netscape Messenger

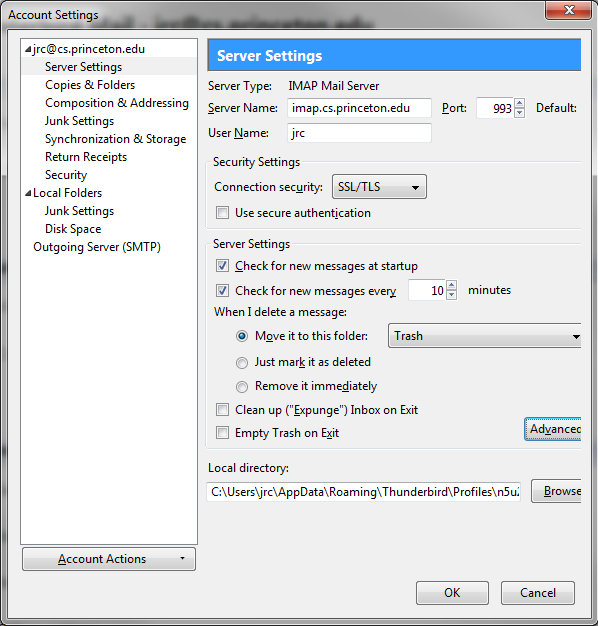

Make sure "Use secure connection (SSL)" is selected in the Server Settings section of the "Account Settings" dialog.

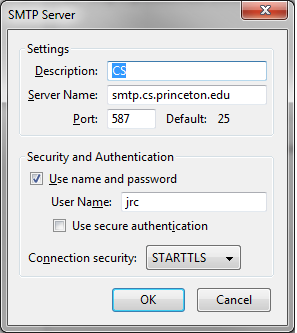

You should also turn on TLS and authentication in the "Outgoing Server (SMTP)" section. This is required for all users.

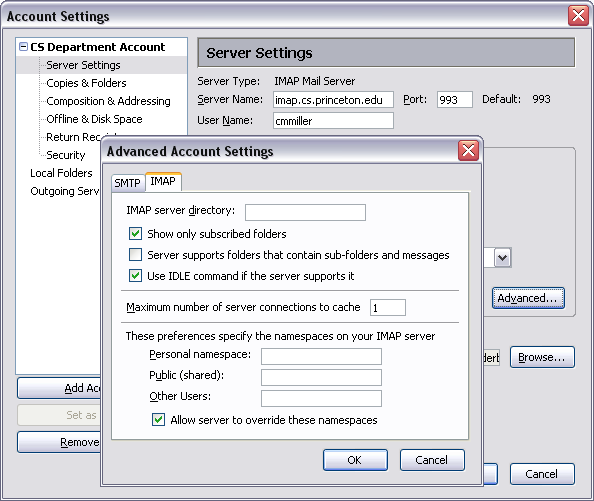

Note that the specific "IMAP server directory:" setting may vary if you use other mail clients which store mail in, for instance, ~/Mail/.

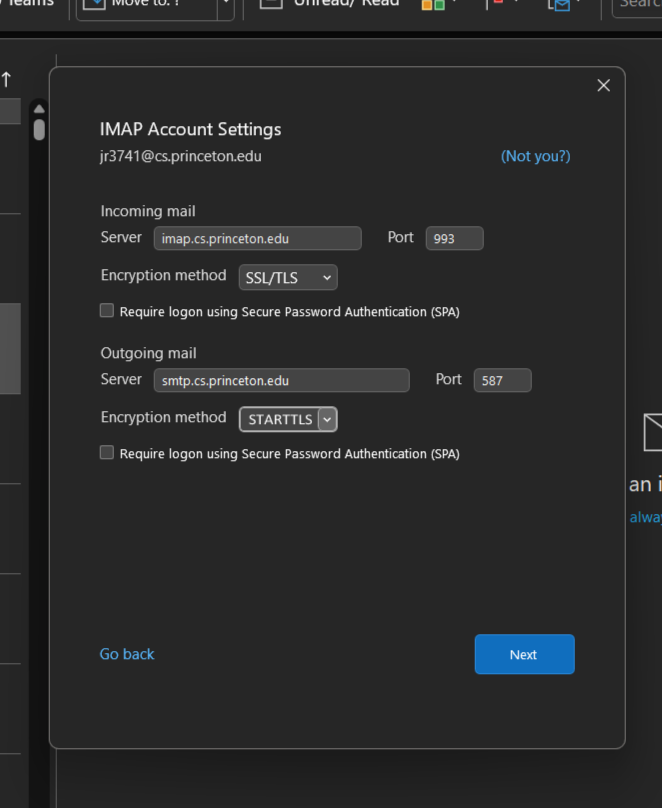

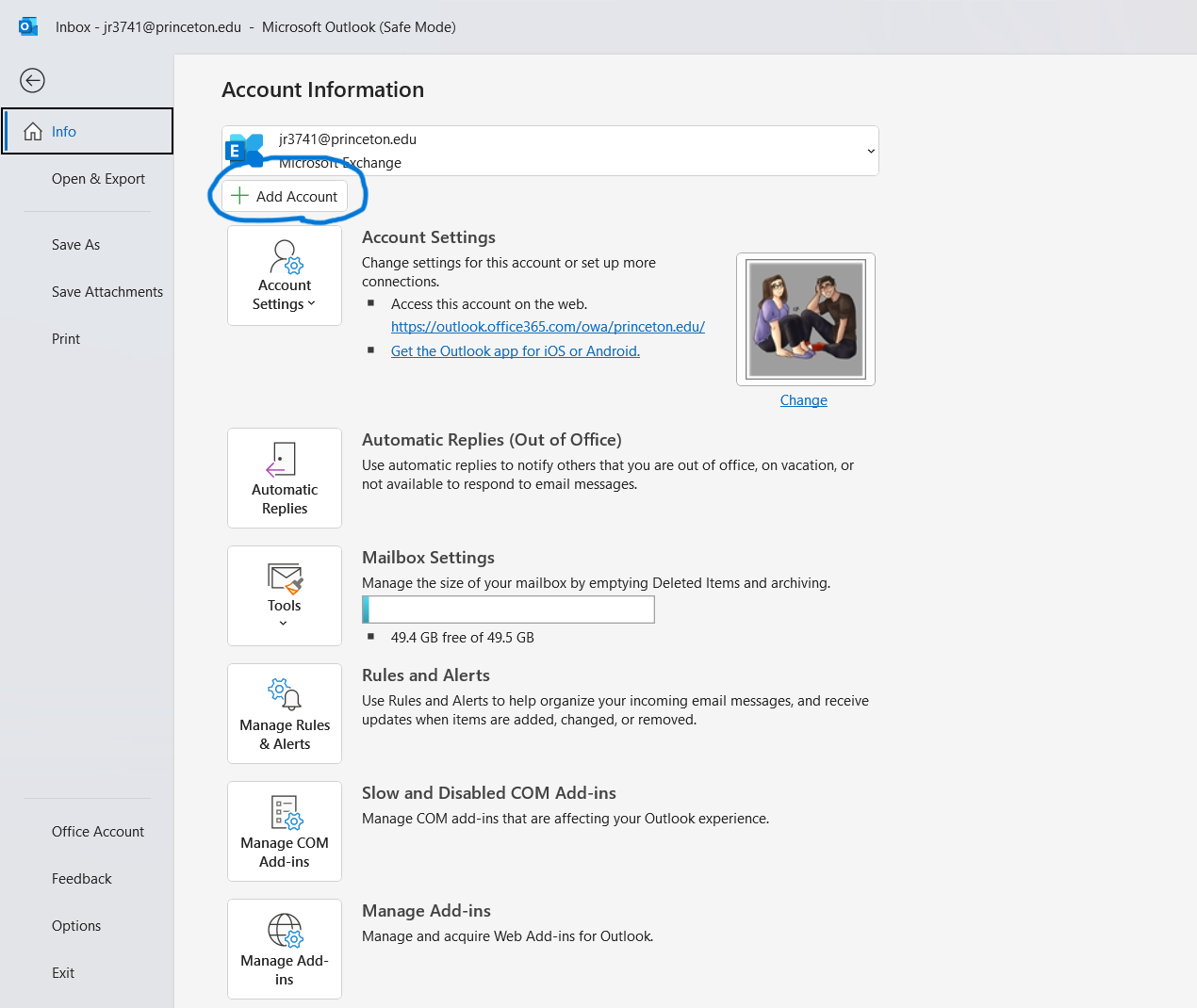

Microsoft Outlook

Make sure "This server requires a secure connection (SSL)" is checked in the Advanced tab of the mail server settings dialog.

You should also turn on authentication in the Outgoing Server tab. This is required for all users.

Note that the specific "Root folder path:" setting may vary, depending on how you have previously used email. The recommended setting is "/" or to leave it blank.


Fetchmail

Fetchmail is fairly well documented at the fetchmail homepage. Specifically, the question of using SSL is covered in the FAQ.


Pine

The latest version of Pine (4.55 at this writing) can be compiled with SSL Support. See the Pine Information Center for more information on compiling and using Pine.


Mac Mail.app

The setup section for Mail.app is awaiting screenshots.

The default "Drafts," "Sent," and "Trash" folders in the Mac Mail.app may not align properly with Zimbra immediately after adding the IMAP server to your Mac. The following instructions were taken from the Zimbra Wiki:

  • open Mail.app
  • click on the Trash folder under your Zimbra account
  • go to "Mailbox > Use this Mailbox for" and select Trash
  • do the same for Sent and Draft folders (unless they have been automatically mapped)
  • they will now appear below the Mail.app Trash, Sent, Draft folders along with the special folders from other accounts.
  • you will likely end up with new folders in the Zimbra section called 'Deleted Messages' and 'Sent Messages.'
  • you should delete these folders now (move any mail before you delete them)

iPhone

  1. Launch the "Settings" application and select ""Mail, Contacts, Calendars"
  2. Select "Add Account..."
  3. Select "Other"
  4. Enter your full name and email address (including @cs.princeton.edu) in the appropriate fields
  5. Enter your CS Unix password in the "Password" field
  6. Enter a "Description" such as "CS IMAP"
  7. Select "Save" in the upper-right corner of the screen
  8. Enter the "Incoming Mail Server" information:
    • Host Name: imap.cs.princeton.edu
    • User Name: your CS Unix username
    • Your pasword should already be filled in
  9. Enter the "Outgoing Mail Server" information:
    • Host Name: smtp.cs.princeton.edu
    • User Name: your CS Unix username
    • Password: your CS Unix password
  10. Select "Save" in the upper-right corner of the screen
  11. When the "Secure Connection Failed" alert box appears, select "Continue"
  12. When the second "Secure Connection Failed" alert box appears, select "Continue"
  13. When you are returned to the "Mail, Contacts, Calendars" settings page, basic setup is complete.

Similarly to Mail.app, the defaults for the "Drafts," "Sent," and "Trash" folders on the iPhone may not align properly with the Zimbra IMAP server. Use the following instructions to finish the configuration of your IMAP account:

  1. On the "Mail, Contacts, Calendars" settings page, select the IMAP account that you just added (eg "CS IMAP")
  2. Scroll down and select "Advanced"
  3. In the "Mailbox Behaviors" section, select "Sent Mailbox"
  4. Scroll down and select "Sent" in the "On the Server" section
  5. Touch "Advanced" in the upper-left corner of the screen
  6. Select "Deleted Mailbox"
  7. Scroll down and select "Trash" in the "On the Server" section
  8. Touch "Advanced" in the upper-left corner of the screen
  9. If desired, modify the "Removed" setting in a similar fashion to the above
  10. Exit the "Settings" application

Please NOTE:

When specifying what IMAP server to connect to, it is imperative that you say "imap.cs.princeton.edu". (Not "mail.cs.princeton.edu", not "mail", and not "imap".) This is because when a client connects to the secure IMAP daemon, the certificate that is presented to it by the server identifies the server as "imap.cs.princeton.edu". If you connect to the secure IMAP server using a different alias, both Messenger and Outlook will complain that the certificate is not valid. This warning also applies to the SMTP server: you must specify the name as "smtp.cs.princeton.edu".
